Ultimate Solution for Earthing & Lightning Protection

Ashlok Single Spike: Precision Lightning Defence

Air Terminal

It is the top most part of a lightning protection system & is intended to intercept the lightning leader. The air terminal is made of a solid highly conductive material. It comes in a range of base materials & surface platings.


Ashlok's Lightning Safety Equipment  The Air terminal is made of highly solid conductive materials like Galvanised Iron, Copper and Stainless Steel to withstand the strikes.

Ashlok - Your Lightning Protection Partner  Corrosion Resistant.

Enhanced Safety with Ashlok Air Terminal  Polished.


Coverage of Conventional Type

Protection Level Protection Efficiency Protection Angle Method (Height-Metres)
20 30 45 60
I 0.98 20˚ N/A N/A N/A
II 0.95 35˚ 25˚ N/A N/A
III 0.90 45˚ 35˚ 25˚ N/A
IV 0.80 55˚ 45˚ 35˚ 25˚

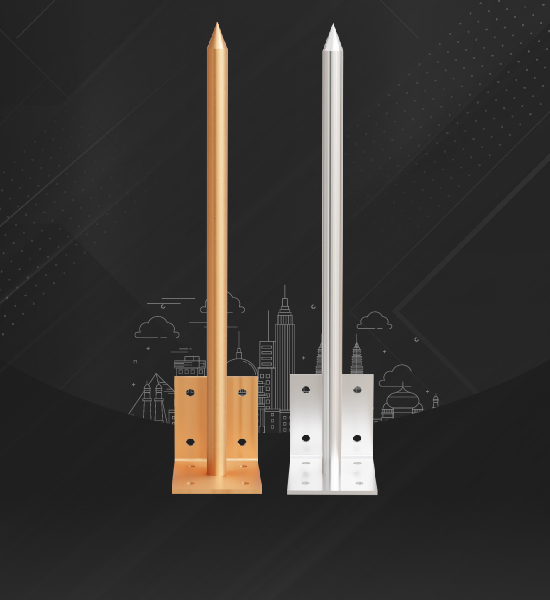

Trusted Air Terminal Solution - Ashlok
Air Terminal

AirTeminal Variants

Type AT GI 300 | 1000 S AT SS 300 | 1000 S AT GI 300 | 1000 L AT CU 300 | 1000 L AT AL 1000 | 2000 L
Applicable Standard IS/IEC - 62305 IS/IEC - 62305 IS/IEC - 62305 IS/IEC - 62305 IS/IEC - 62305
Material Of Construction GI SS GI CU AL
Total Length 3/10 3/10 3/10 3/10 10/20
Diameter of Main Rod 15/16 mm 15/16 mm 15/16 mm 15/16 mm 16 mm
