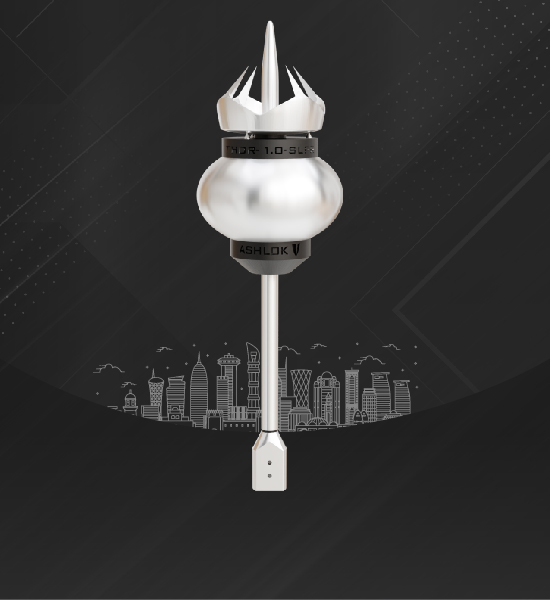

THOR® SLPR 1.0
Thor® SLPR is designed in such a way that the sum of its parts works in tandem to attract and capture lightning strikes in an efficient way
When the downward leader approaches the structure and creates an electric field to enable free movement of charges, the internal design of Thor® SLPR helps to increase the quantity of emitted charges by reducing and limiting corona in the initial stages of lightning. The charges stored in Thor® SLPR will not be wasted in the developing stages of lightning as it is designed to provide zero surface area for corona to occur. Once Thor® SLPR gets fully charged, a very powerful upward streamer with high charge density of longer length is released from THOR® SLPR which couples with the downward leader from lightning, at a very high distance from the structure, which it is protecting. Hence Thor® SLPR is able to protect a larger area.
 | Country Of Origin | First Indian made Advanced Safe Lightning Protection Rod |
| | Technology | Based on a Hybrid Model which conforms to the latest ESE standard as per NFC & Corona Inhibiting Technology. |
| | Central Main Rod | Based on the result of recent research it has been concluded that Blunt Tip is more efficient in real world conditions in increasing the efficiency of the system. |
| | Upward Streamer | Blunt tip increases the length of upward streamer as the construction of the system allows it to store the charge with in it so as to release it in the most optimum possible way. |
| | Power Source | Thor® SLPR doesn't require any input. Completely Self Reliant. |
| Coverage Area | Provides larger area for interception of lightning. |
| Material Of Construction (SS 304) | Made of high quality stainless steel which allows the system to efficiently operate in all kinds of weather conditions. Corrosion Resistant. |
| Installation | Service Support | Direct Manufacturers Service Support for Installation and Maintenance. |
| | Certification | CPRI tested & certified for both types (+,-) impulse. |
| | Design Patent | Intellectual Patent | The one & only Indian make brand of its category to get patent due to its unique combination of technology & design. |
| Model | Thor® SLPR 1.0 | Thor Helios SLPR | Thor® SLPR 1.1 | Thor Helios Bolt | Thor® SLPR 1.2 |
|---|---|---|---|---|
| Δ | 60 μs | 45 μs | 30 μs | 25 μs |
| Level 1 | 79 M | 63 M | 48 M | 42 M |
| Level 2 | 87 M | 71 M | 54 M | 49 M |
| Level 3 | 97 M | 81 M | 63 M | 57 M |
| Level 4 | 107 M | 89 M | 71 M | 65 M |
| Type | Thor® SLPR 1.0 | Thor® SLPR 1.1 | Thor® SLPR 1.2 | Thor Helios SLPR | Thor Helios Bolt |
|---|---|---|---|---|---|
| Applicable Standard | NFC 17 - 102 | NFC 17 - 102 | NFC 17 - 102 | NFC 17 - 102 | NFC 17 - 102 |
| Material Of Construction | SS 304 L | SS 304 L | SS 304 L | SS 304 L | SS 304 L |
| Triggering Time ( ∆ t) | 60"μsec | 45"μsec | 25"μsec | 60"μsec | 60"μsec |
| Total Length | 660 mm | 590 mm | 510 mm | 510 mm | 252 mm |
| Diameter of Main Rod | 22 mm | 20 mm | 19 mm | 19 mm | 22 mm |
| Diameter of Sphere | 210 mm | 150 mm | 135 mm | 135 mm | - |
