ZEUS® SLPR (SS) - 1.0
Ashlok’s ZEUS Safe Lightning Protection Rod system is an improved version of Franklyn type lightning protection system.
ZEUS Safe Lightning Protection system consists of one primary and four secondary air terminals. The primary air terminal is a vertical conductive rod having a sharp tip at one end. The secondary air terminals (4 No) formed on a bowl shaped circular disc are fixed on the vertical rod. Further, the acute points of the secondary air terminals are spaced and placed in such a way to receive the maximum side flashes.
How ZEUS Safe Lightning Protection Rod functions - It attracts and receives the direct lightning, approaching the structure and the secondary air terminals arrests the side flashes, and dissipate the high voltage lightning currents into the earth mass through conductors, thus preventing damages to the structure/building and fire hazards.
In general, the angle of protection is 45° at 15 metre height & 30° at 25 metre height.
 | Available in SS . |

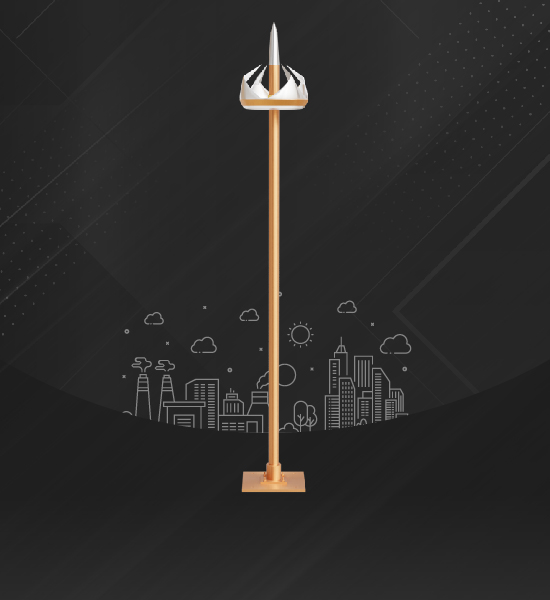

| | Copper variant. |
| | Side Flash Capture Head SFCH. |
| | Overall Length is 1010 mm. |
| | Base plate dimension is 150mm x 150mm x 6mm. |
| | Conforms to IEC 62305 i.e., Code Of Practice For Lightning. |
| | Conceptualised | Developed | Designed by ASHLOK . |
| | Tested to withstand multiple 40 kA impulse current. |
| | Maintenance Free. |
| | Fit & Forget. |
| ZEUS Safe Lightning Protection system contains one primary and four secondary air terminals. |
| The primary air terminal is a vertical conductive rod having a sharp tip at one end |
| The secondary air terminals are shaped as a bowl-shaped circular disc that's fixed on the vertical rod. |
| Moreover, the acute points of the secondary air terminals are spaced and placed in such a way to receive the maximum side flashes. |
| CPRI tested for 40kA. |
| Updated version of FRANKLYN Lightning Rod. |
| Type | Zeus 1.0 SS | Zeus 1.0 Cu | Zeus 1.2 SS |
|---|---|---|---|
| Applicable Standard | IS/IEC - 62305 | IS/IEC - 62305 | IS/IEC - 62305 |
| Material Of Construction | SS 304 L | Copper with Niplated Tip | SS 304 L |
| Total Length | 1010 mm | 1010 mm | 505 mm |
| Diameter of Main Rod | 22 mm | 22 mm | 19 mm |
| Diameter of SFCH | 125 mm | 125 mm | 110 mm |
| Base Plate | 150 x 150 x 10mm | 150 x 150 x 10mm | 70 x 70 x 5 mm |
